Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance

Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance
Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance
Βασικές πληροφορίες
Τόπος καταγωγής: Σαγκάη, Κίνα
Μάρκα: Daesum
Ποσότητα παραγγελίας min: 1
Τιμή: $30,000-50,000
Καλύτερη τιμή Επικοινωνήστε
Χωρητικότητα μηχανημάτων: 35 BPH, 50 BPH Δυναμικό: 380V 50Hz
Ακρίβεια πλήρωσης: ± 0,2%FS Χωρητικότητα πλήρωσης: 35-50 τύμπανα/ώρα
Αξία διαίρεσης: 100G Θερμοκρασία περιβάλλοντος: -10 ℃ ~ 55 ℃
Εκ των προτέρων επίπεδο: D2BT4 Επίπεδο προστασίας: Καλύτερα από το IP55
Θερμοκρασία προϊόντος: κάτω από 270 ℃ Πίεση παροχής αέρα: 0,4-0,6MPa
Πίεση προμήθειας προϊόντος: 0,5-1MPA Βάρος: 1000 kg
Οδηγός τύπου: Ηλεκτρικός Βασικά στοιχεία: Κινητήρας, PLC, Γρανάζια, Ρουλεμάν, Κιβώτιο ταχυτήτων, Κινητήρας, Ακροφύσιο πλήρωσης
Ύψος πλατφόρμας ζύγισης: 10 εκατοστά
Επισημαίνω:

Visual Positioning Pallet Filling Machine

,

Stainless Steel S304 Filling Machine

,

High Temperature Endurance Drum Filling Machine

200L/IBC Visual Positioning Pallet Fully Automatic Filling Machine
Product Overview

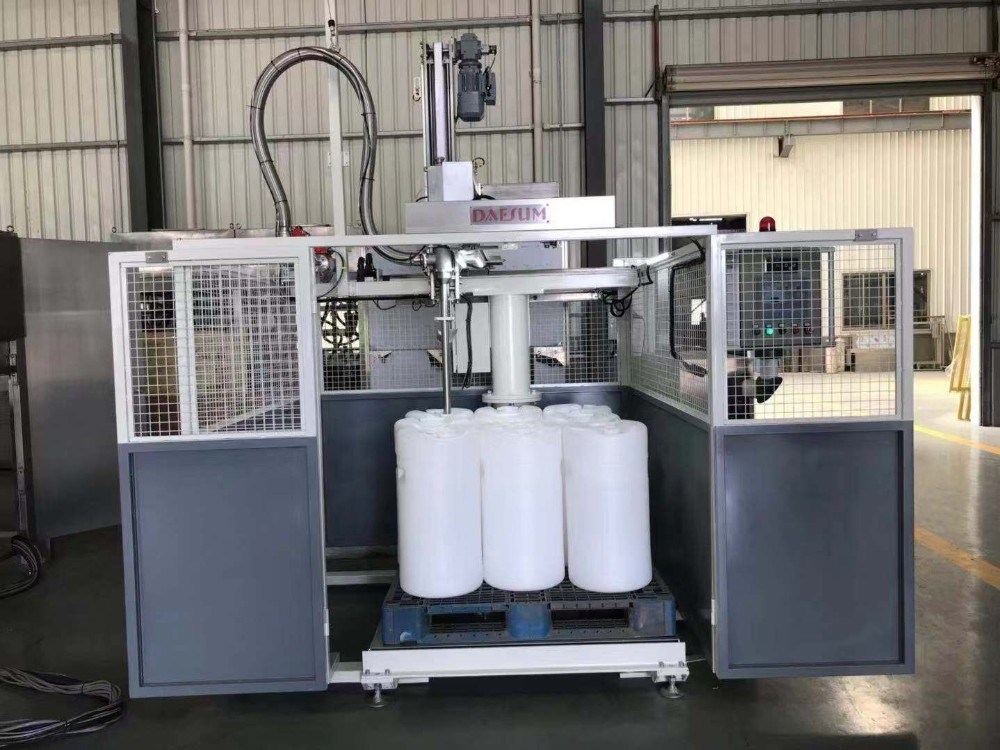

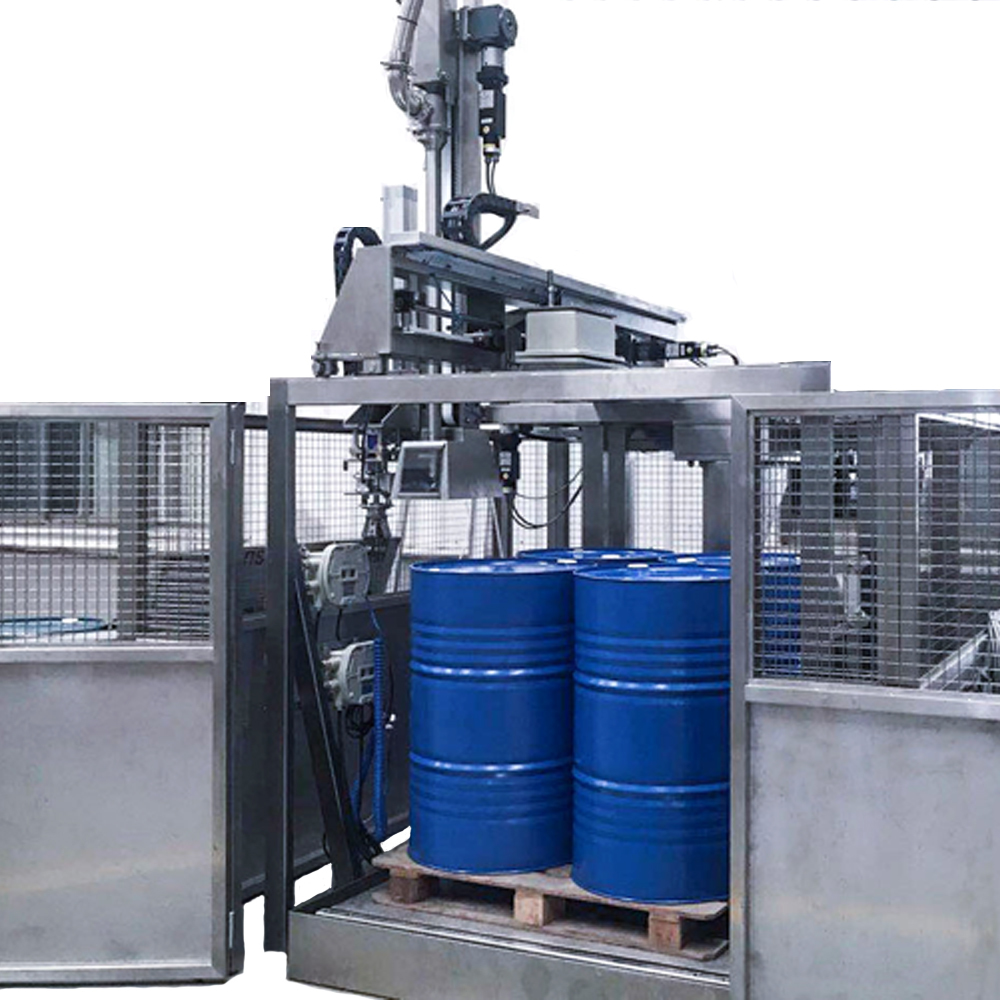

The GZ200*4-1BS pallet type below-bunghole fully automatic filling machine features visual bunghole positioning, automatic cap releasing, automatic capping, and automatic filling capabilities. Designed for chemical products in drums ranging from 40L to 1000L.

Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance 0
Key Features
  • Filling Nozzle: Internal-type metal-sealed bottom valve with compression-type graphite packing shaft seal for zero dripping and high temperature endurance
  • Safety System: Interlock security prevents operation when drum is improperly positioned
  • Weighing System: TRANSCELL stainless steel nitrogen purging sensors with UNIPLUS instruments
  • Construction: S304 hard connection pipe and valve system for high integrity and safety
Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance 1 Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance 2
Technical Specifications
  • Capacity: 200L/IBC
  • Filling Stations: 1 per machine
  • Drum Size Range: 40L to 1000L
  • Weighing Platform Height: 10cm
  • Material: S304 stainless steel
Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance 3 Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance 4
Conveyor System

Includes 4 roller conveyors: empty drum infeed, weighing, filled drum outfeed, and filled drum wait-shovel. Powered roller conveyors feature ex-proof motors and reduction gears with low 10cm profile for safe operation.

Optional Equipment

Palletizing System: Automatically transfers completed drums to pallets two at a time, with automatic pallet magazine for continuous operation.

Successful Case Study

Guangdong Qingyuan Company (2018): Installed 3 automatic visual positioning filling lines that have operated continuously without mechanical or safety issues, creating significant annual value.

Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance 5 Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance 6 Fully Automatic Pallet Filling Machine with Visual Positioning Stainless Steel S304 Construction and High Temperature Endurance 7
